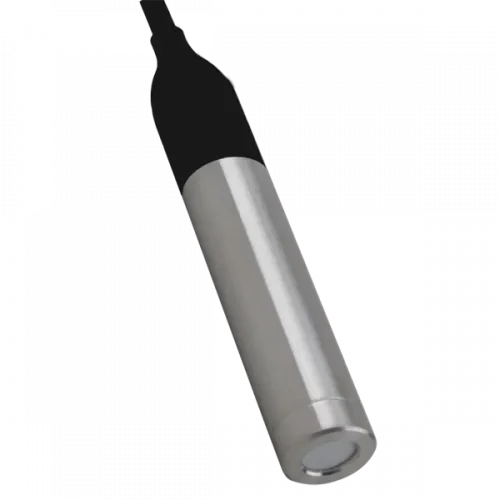

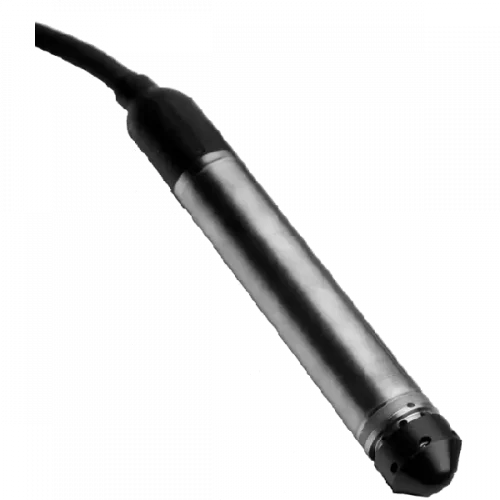

Pressure Transmitter

PT-45T and PT-2000 Series

JOWA USA’s line of quality pressure transmitters includes the PT-45T and PT-2000 Series submersible transmitters. These rugged pressure cells are suitable in a range of level gauging applications from potable water, seawater to wastewater. JOWA USA’s pressure transmitters are made from the finest materials available incorporating advancements in aerospace engineering.

Features

  • Level Ranges up to 692 ft (210 m) H2O (300psi)
  • Accuracy of ±0.1% or ±0.25% FS
  • Small Diameter, .725” or 1.0”
  • Analog 4-20mA Output
  • Titanium or 316L Stainless Steel Construction
  • Intrinsic Safety Approved: Class I, Div. 1 Groups A - G
  • All models are available in both absolute and gauge versions to suit your specific needs

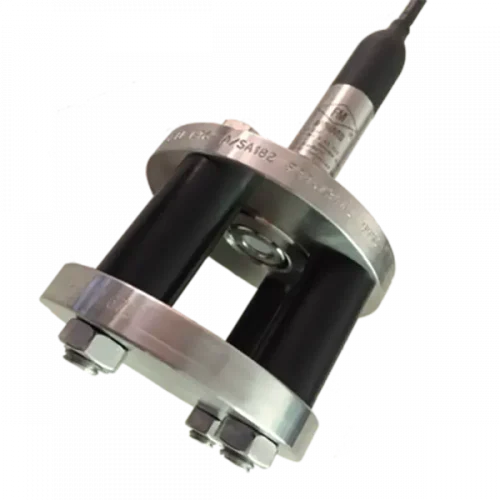

  • Optional Sink Weight on PT2000

Benefits

  • Easy downhole installation
  • Stable positioning: Kevlar members in cable stop cable elongation

Applications

  • Down-hole well monitoring
  • Other submersible level gauging applications

Industrial >> Pressure Transmitters & Ultrasonic

Ultrasonic

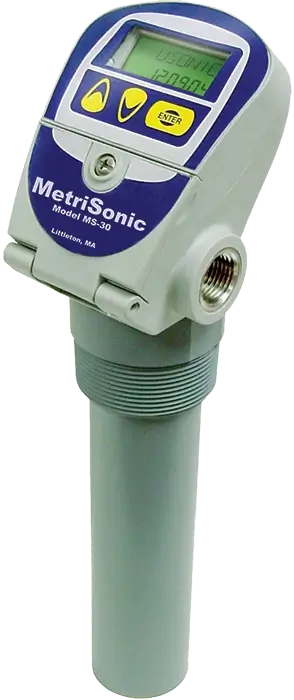

MS-30

The MS-30 is a standalone ultrasonic level sensor that has an integral display. The MS-30 has a 30 foot maximum range, is FM approved and has a .15% accuracy. The set-up is done through the display or with PC software and a HART communicator.
Jowa MS30 D Metrisonic

Features

  • Level monitoring to 30 ft. (9.1 m))
  • Accuracy +/- 0.15% of sensor range
  • NEMA 4X, IP65 rated
  • Two line, 7-digit LCD display
  • Automatic Tank Profiling - automatically ignores most internal obstructions
  • Built in 21 Point Strapping Table for Volume or Nonlinear Applications

Benefits

  • Non-Contact level monitoring

Applications

  • Level or Open Channel Flow monitoring
  • High viscosity or sticky products
